CIP cleaning systems

CIP cleaning systems

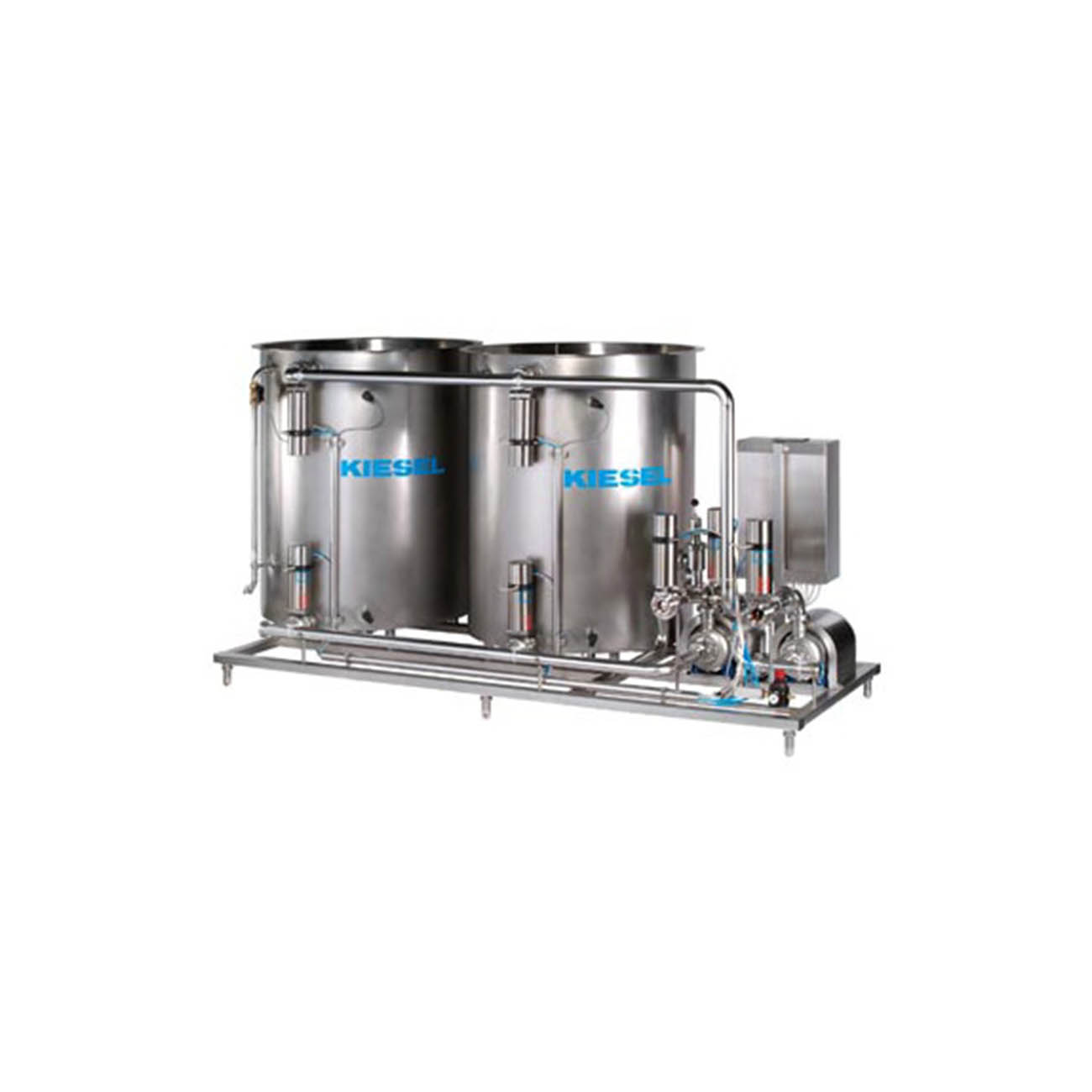

The KIESEL-CIP-cleaning systems make it possible that pipelines, tanks, pumps, fillers, destemming machines, conveyor belts can be cleaned without disassembly by several cleaning processes, so that they correspond to the hygiene regulations of the food laws.



Especially for wineries, sparkling wine cellars and fruit juice plants we have designed modules.

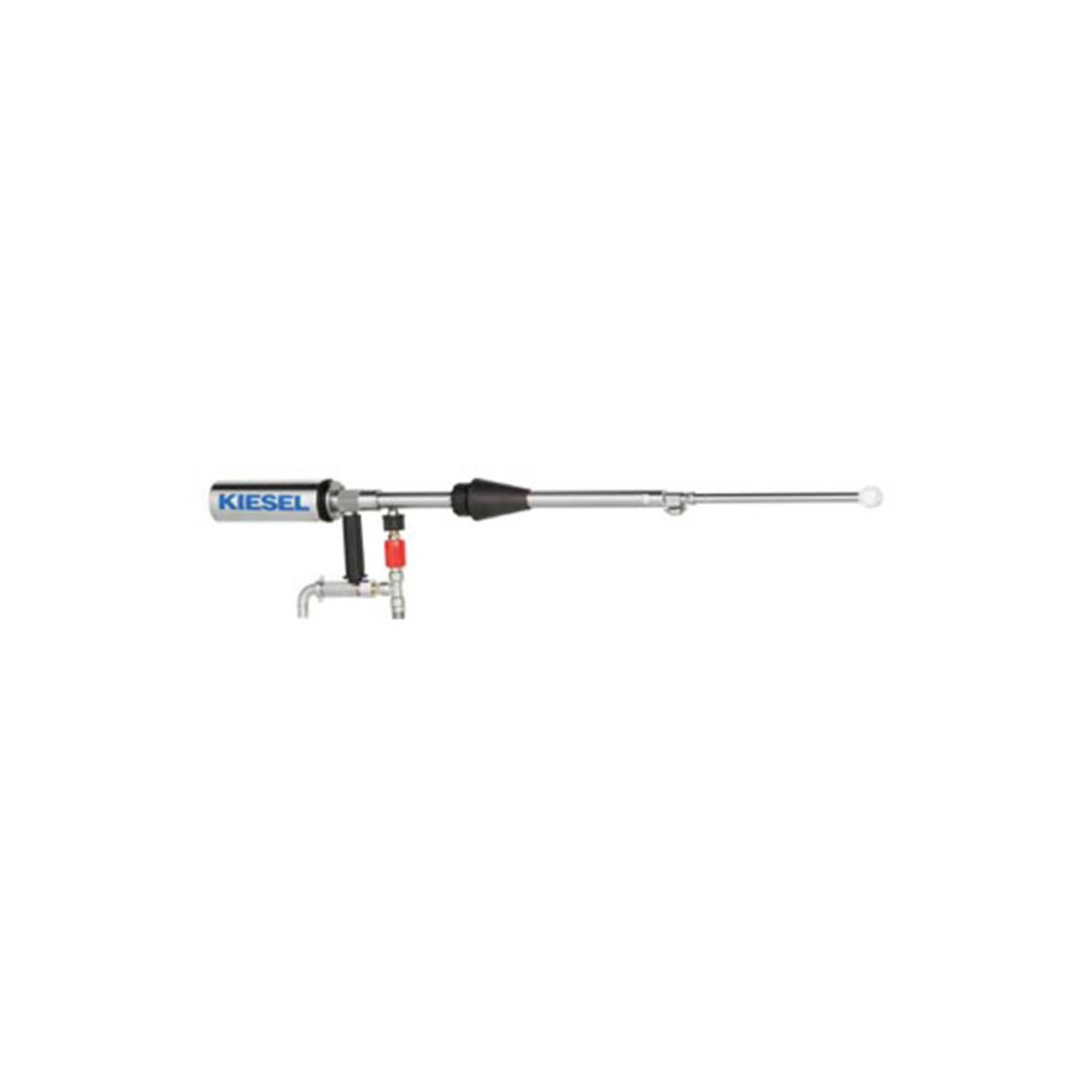

The KIESEL high-pressure cleaner with dirty water suction was especially developed for barrique barrels and can be connected to any high-pressure cleaning device.



The cleaning of wooden containers can therefore be carried out without chemical cleaning agents and is therefore also suitable for keg barrels. The high pressure cleaner creates a high pressure of up to 100 bar. The nozzles move on planetary orbits and clean all areas, including bunghole, cleaning of containers and kegs.

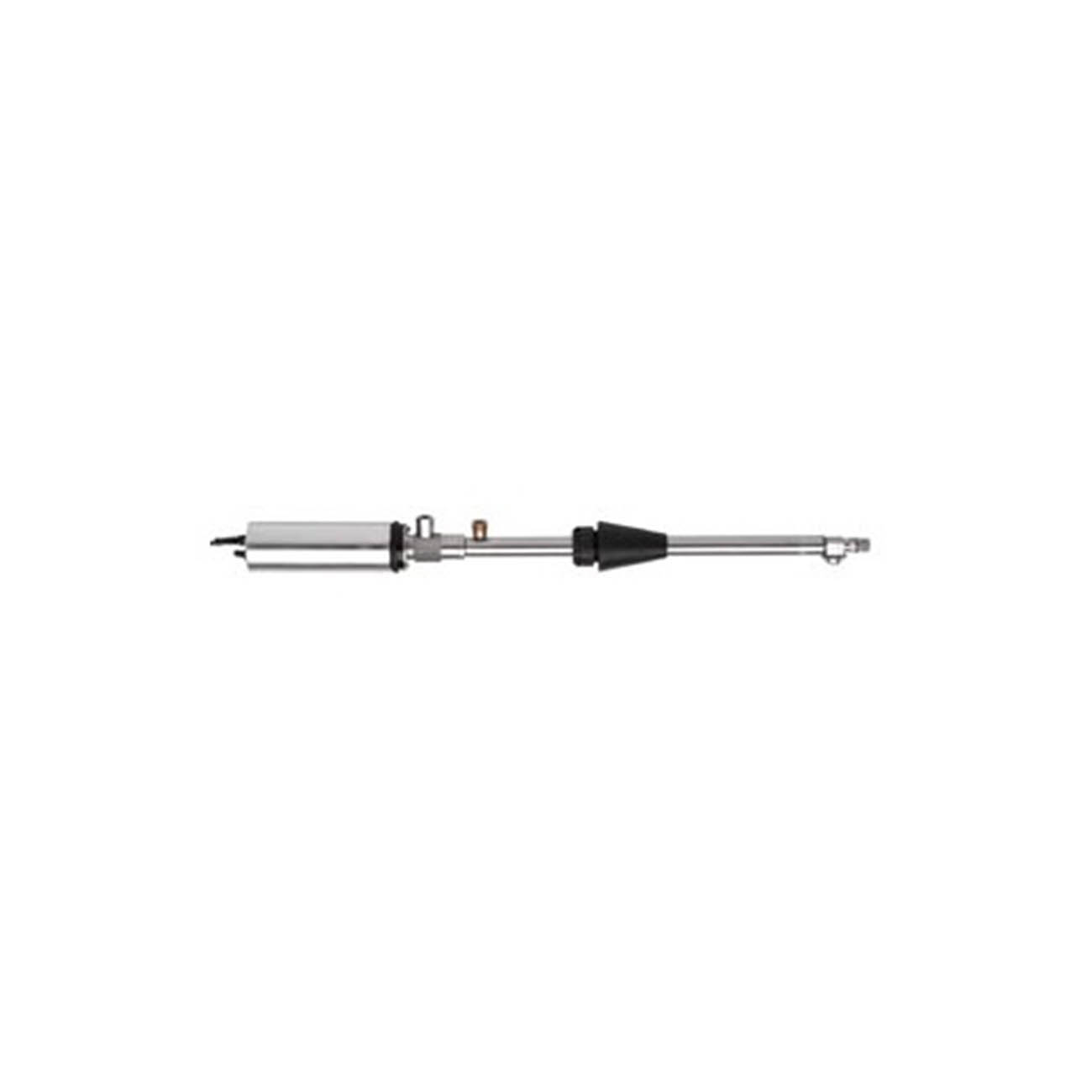

This KIESEL high-pressure cleaner is equipped without a dirty water suction system and can be used for tanks, vessels, containers and wooden barrels of any size. It creates a high pressure of up to 100 bar. The nozzles move on planetary orbits and clean all areas, including bunghole, cleaning of containers and kegs.

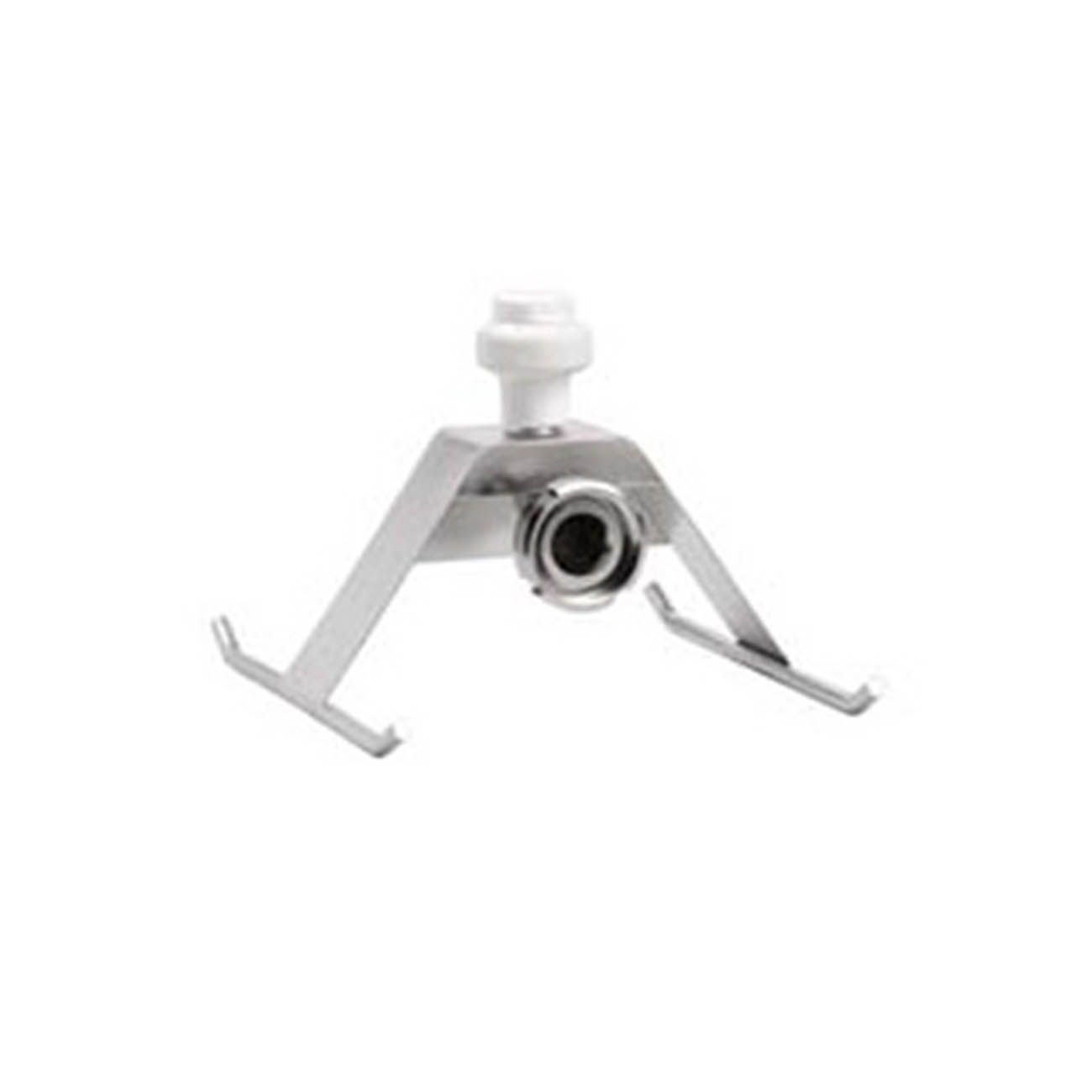

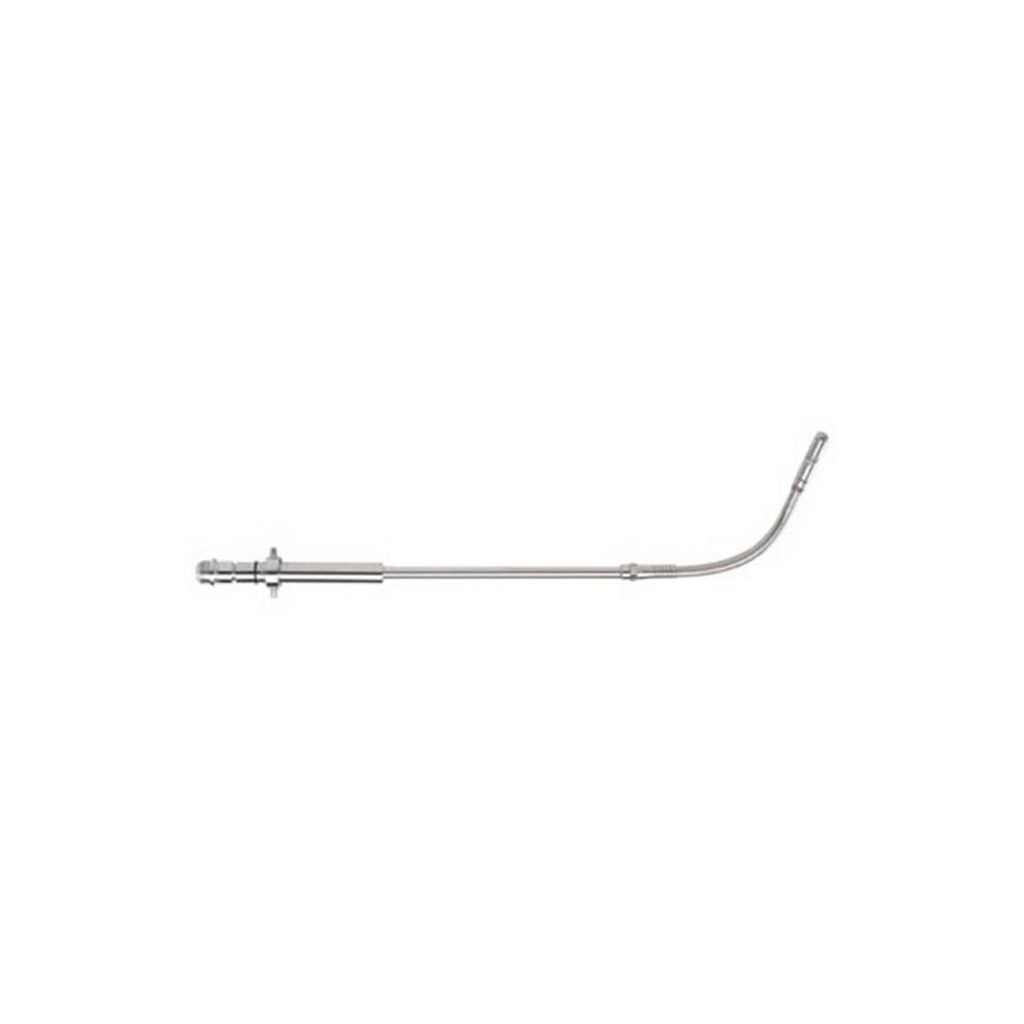

The KIESEL low pressure cleaner has a tapping pipe for bunghole flap size 37 and flexible wave. It can be used for cleaning tanks with tap hole flap connection up to approx. 5000 liters capacity. It is attached to the clear drain. The circulation process can be performed with any eccentric screw, impeller or centrifugal pump up to 4 bar pressure.

Requirements

  • Flow velocities of the cleaning media of at least 3m/sec
  • CIP-cleanable equipment like tanks, pumps, fillers
  • Automatically controlled cleaning processes that can be documented

Other versions on request.



For details please refer to our brochure.
